Bendable P2 Flexible LED Displays Module Foldable SMD1515 14 Bit
P2 Bendable Flexible Display Module Custom Size Foldable Led Screen Price
Product description

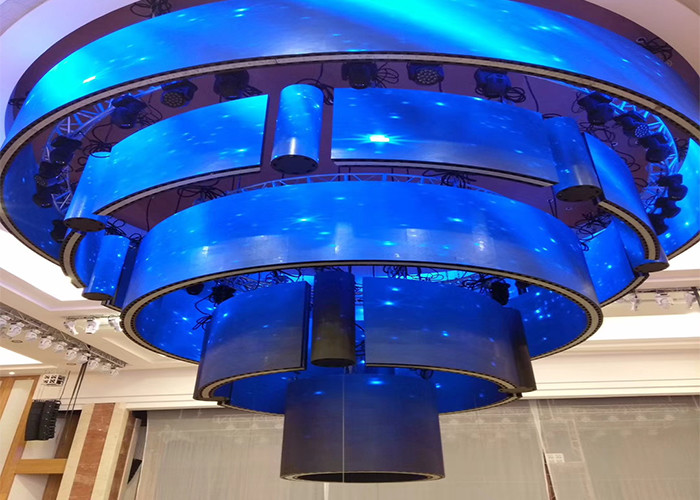

1. Applicable to the cylindrical design of units, shopping malls, bars, stage backgrounds, exhibition halls, planning exhibition halls, etc.
2. The led soft module series are available in P1.875/P2/P2.5/P3/P4 specifications.
3. Soft, light and thin, suitable for any bending effect.
4. Low current, low heat, high contrast, high brightness and high gray, refreshing 1920Hz, true 16bit gray scale, with SMD1515 pure black light, the black screen is exactly the same as the twilight of the whole screen.
5. It has the characteristics of thinness, light weight, small size, high pixel density, low installation cost, displayable curved surface, and 360-degree multi-screen viewing.
6. Unique design guarantees quick installation and convenient transportation. bendable led screen
| Pixel Pitch | 2mm |
| LED Lamp | SMD1515 |
| LED configuration | SMD 3 in 1 |
| Module Size | 240mm x120mm |
| Module pixels | 120x60dots |
| Average Power/sqm (watts) | 159 |
| Max Power/sqm(watts) | 530 |
| Brightness | 800cd/㎡ |
| Viewing Angle | H:160°, V:120° |
| Best Viewing Distance | 2-200 meters |
| Brightness Control | 256 level |
| Gray scale | 14 bit |
| Refresh frequency | 3840hertz |
| Driving mode | 1/30 scan |
| Input power frequency | 50 or 60 Hertz |
| Input Voltage | 110 ～ 240 Volt,60Hz |
| Blind spot rate | ＜1/10000 |
| Lifetime at 50% brightness | 100000 hours |
| Ingress Protection | IP31 |
| Operating temperature | ﹣20 ～﹢60 ℃ |
| Operating humidity | 10％ ～ 90％ |
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km |
| Signal input format | HDMI,DVI,SDI,VGA etc. |
| Operating system | Windows (2000/XP/Vista/7/8/10) |
One- Stop Solution Service
1.3D/CAD engineering drawing to confirm project execution/implementation as presale service within 72 hours.
2.Free CAD drawings for steel structure, signal/power connections of led display which guide for site cable arrangement and structure preparation in advance.
3.7/24 online remote control service , and local engineer service within 8 hours contact.
4.Free technical training in factory.
5.MPLED engineers will fly to the site if you need local service.
6.Expanding market plan with professional MPLED team over 8 years experience.
7.Multiple options for global transportation, like FOB, CIF, DDP, DDU to most countries
FAQ
Q: Are you manufacturer or trade company?
A: We are manufacturer,
Q: Do you offer OEM&ODM service?
A: Yes, we do.
Q: What’s the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS certification.
Q: Which place will use ITC equipment?
A: Our products are widely used in International Conferences, Governments,Banks,Churches, Highways,Airports,Parliaments,Education institutes,Hotel,Private corporate conference hall and so on.
Q: What project did you have done in overseas?
A: 2017, MPLED P6 outdoor led display assist for Senator Election of South Korea
2018, MPLED P10 outdoor led display light up in The World Cup in Russia
2019, MPLED P2.97 stage led display stand the stage for Senator Election of Indonesia
2020, MPLED P1.86 led display(more than 150sq.m) install in Singapore Casino
2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL
2021, MPLED P8 outdoor customized wave led display light up in Kuwait landmark
